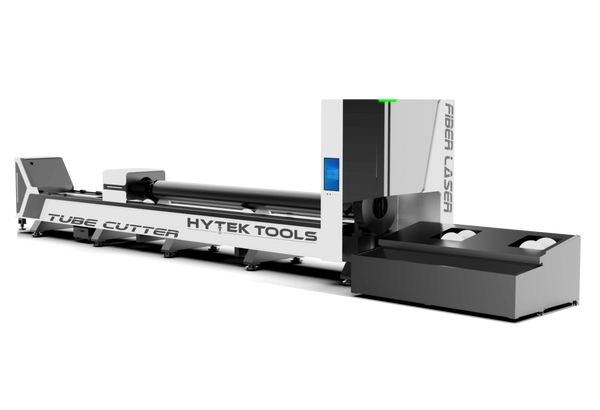

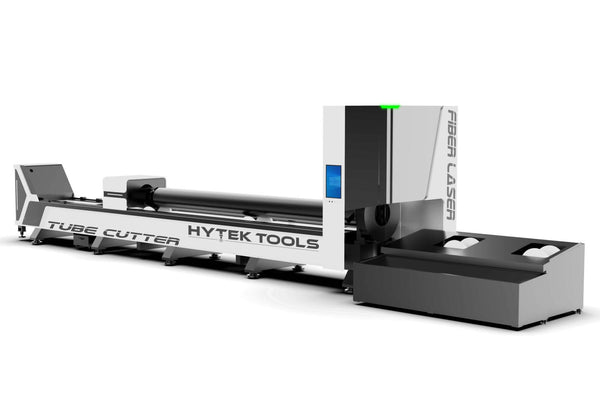

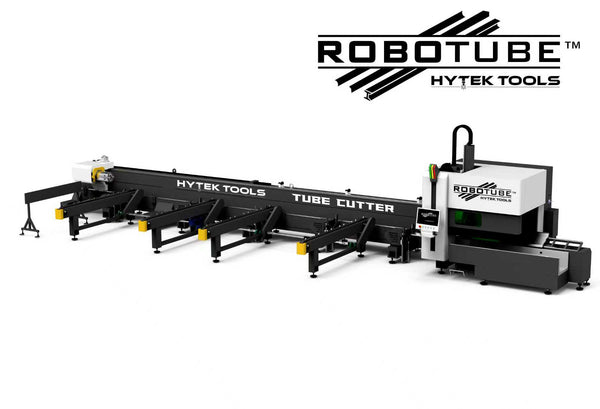

NEW - ROBOTUBE™ Fiber Laser Metal Tube Cutter

Tube Laser Cutter 20ft, 30ft & 40ft Length

Table Construction & Highlights

• 20ft, 30ft & 40ft length x 0.75" - 12.0" diameter standard

• Frame 3/8" welded steel tube frames
• HiWin linear high precision stainless steel guide rails & bearings
• Tube Cut Pro Software

Machine Electronics

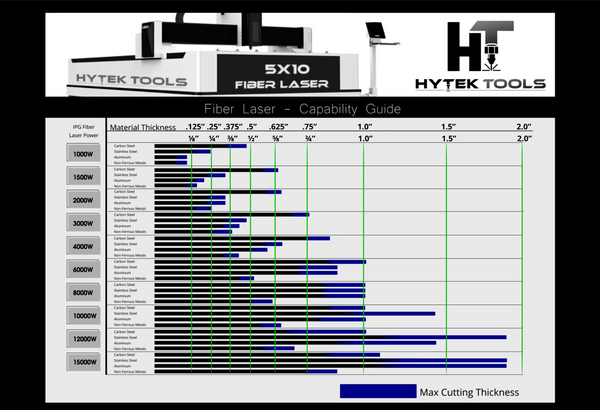

• 3000w & 6000w fiber laser (see capability chart below)
• Yaskawa servo drivers & motors
• Schneider electrical components
• Water chiller
• Exhaust fan

Required Power

• 3000w, 6000w AC 220v-600v three phase

Machine Stats

• Cut rate 120 r/min

Warranties Include:

• Lifetime hardware support from Hytek Tools
• One year parts warranty
• Custom tech videos on request

You Will Need:

• 2 Forklifts to offload (<5,000 lbs capacity + 6ft forks)

Extras Include:

• Hand delivery by Hytek Tools Certified Technicians
• On site operation demonstrations
• All inclusive and all included in the listed PRICE - ALWAYS! No surprises!

3kw vs 6kw Laser Source

If you need to get into cutting some thick steel tube, I mean like well over 1/2", you will want to get the 6kw version. If you are cutting only thin metal tube, the 3kw is sufficient. Keep in mind going to a 6kw, even with thinner metals greatly increases cut speeds. Some of the thinner metals can be cut 4-6 times the speed on the 6kw.
